FURTHER PROCESSING FOR IMPROVED QUALITY

Working with nature: our industry and lives depend on nature – healthy sheep, clean water, fresh air and productive pastures. ANDAR works with nature by treating the environment and its renewable resources carefully, demonstrating a responsible relationship with the environment in which we live.
ANDAR provides effluent treatment processes for a wide range of industries and applications including the removal of organic compounds, minerals, chemicals, solids and animal fats.




The Enviroloop™ System developed by ANDAR involves the integration of up to eight modules of operation for complete waste treatment. Enviroloop™ has been designed in this modular approach so stages can be added as required to comply with tightening regulations. It is a major improvement over traditional effluent treatment systems since the end products (compost and liquid fertiliser) contain no wool grease to contaminate soils or water supplies. The integrated systems are designed to provide cost savings by reducing water use and improving plant efficiencies.



Enviroloop™ involves the integration of up to eight unit operations:

  • Removal of solids from the scouring bowls (Heavy Solids Loop)
  • The recovery of Wool Grease from the scouring flows (Wool Grease Recovery)
  • Chemical flocculation of raw heavy effluent (Sirolan® CF)
  • Biological treatment of the Sirolan® CF treated effluent (Sirolan® CF-B)
  • Chemical treatment and filtration of rinsewater (Clearinse)
  • Evaporation of the Sirolan® CF-B treated effluent (Evaporation)
  • Ensure the recycled water has no residual colour or odour (Ozone)
  • Composting of the Sirolan® CF treated sludge (Rotocom™)

ANDAR woolscours produce two sources of effluent, ‘flowdown’ (heavy effluent) and rinsewater (light effluent). The flowdown contains a complex mixture of materials, including woolgrease, suint and dirt. This effluent contains water soluble, solvent soluble and insoluble components in the mixture, all held in a stable emulsion by detergent.
ANDAR has recognised that waste treatment systems work best on handling separate solid and liquid components. The solid and liquid streams of the heavy phase are split in the third module (Sirolan CF), so that downstream processes can be designed and optimised accordingly.



Heavy Solids Loop

The Heavy Solids Loop is designed to provide continuous solids removal from the scouring bowls during processing, while maintaining bowl concentration levels. This system is a combination of a Rotary Fibre Strainer, Hydrocyclones, Feed pump, flow meter, valves, collection tank and pipework. The complexity of Heavy Solids Loops can range from a stand-alone single bowl loop or a combined loop on all of the scouring bowls. The use of a Heavy Solids Loop prior to a Wool Grease Recovery provides protection to the separators reducing wear and maintenance.



Wool Grease Recovery

Bowl liquor is drawn off the first hot scour bowl, where the liquor has the highest grease content. The collected liquor is pumped through the stand-alone WGR plant. Here it is exposed to heat and high speed centrifuging for separation, extracting the various phases from the intermixed liquor. ANDAR offer two Wool Grease Recovery systems:



3 Stage Recovery

For higher grease content wools – traditional system for fine wools.

Separators

ANDAR offer a range of centrifuges including Alfa Laval, Westfalia, Garap, Luzhou or other brands by customer specification.



  • Primary Centrifuge
  • Secondary Centrifuge
  • Purifier Centrifuge



2 Stage Recovery

For lower grease content wools – traditional system for coarse wools.

Separators

ANDAR offer a range of centrifuges including Alfa Laval, Westfalia, Garap, Luzhou or other brands by customer specification.



  • Primary Centrifuge
  • Purifier Centrifuge

Sirolan CF

The Sirolan CF process uses a chemical flocculation treatment designed to remove solids and grease from wool scouring wastewater. The removal of up to 90% of the wool wax, up to 99% of the solids, and up to 75% of the Biological Oxygen Demand (BOD) from the water waste streams is achievable using this method.

  • CF Panel
  • Decanter

Sirolan CF -B

The Sirolan CF-B process uses an aerated biological reactor to remove the biological and volatile chemicals in the pre-treated effluent, neutralising it and degrading its remaining Biological Oxygen Demand (BOD). The resulting biomass is recycled back through the reactor, to cultivate an activated sludge process or sent for dewatering.



Sirolan CF-B works best when there are high levels of dissolved organic solids, and where suspended solids, woolgrease and other insoluble material have been removed from the effluent stream.

Clearince

The ANDAR Clearinse process is a patented filtration system designed to treat wastewaters and process waters low in grease levels. Combining a chemical reaction with filtration system treats the low strength effluents containing suspended solids. Up to 95% of the rinsewater can be recycled back to the scour, reducing overall plant consumption, easing the load on plant heating systems through return of warm water. The addition of turbidity control ensures optimal chemical use whilst maintaining treated rinsewater quality for recycling back to the scour.

  • Clearinse Module
  • Polymer Mixing plant
  • Chemical Dosing Station

Evaporation

The evaporation process produces concentrate by boiling off the water from the treated effluent from the Sirolan CF-B process. The concentrate produced is a liquid stream of organic potassium salts, low in dirt, and free of wool grease and pesticides. This liquid fertiliser has been proven to enhance plant growth in university studies. The condensate produced contains virtually no colour, odour (ammonia) or residual COD or BOD.



Wool scouring plants already with evaporators can have their performance and throughput significantly improved by installing Sirolan CF/CF-B upstream.

Ozone

This optional step for the Enviroloop™ system is added when a ‘zero discharge’ of liquid effluent is required, and the recycled water must be of good enough quality for reuse in the plant. The Ozone gas is generated and added to the water stream by way of a contractor.



The organics break down into harmless by-products, and the ozone reduces to oxygen gas. The presence of hydrogen peroxide as a catalyst speeds up this reaction, and is converted to water upon reaction with ozone.

Bowl liquor is drawn off the first hot scour bowl, where the liquor has the highest grease content. The collected liquor is pumped through the stand-alone WGR plant. Here it is exposed to heat and high speed centrifuging for separation, extracting the various phases from the intermixed liquor. ANDAR offer two Wool Grease Recovery systems:

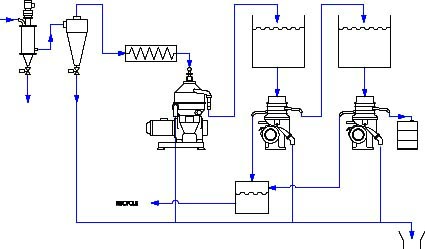

3 Stage Recovery3 stage wool grease recovery

For higher grease content wools – traditional system for fine wools.

Separators

ANDAR offer a range of centrifuges including Alfa Laval, Westfalia, Garap, Luzhou or other brands by customer specification.



  • Primary Centrifuge
  • Secondary Centrifuge
  • Purifier Centrifuge









2 Stage Recovery2 stage wool grease recovery

For lower grease content wools – traditional system for coarse wools.

Separators

ANDAR offer a range of centrifuges including Alfa Laval, Westfalia, Garap, Luzhou or other brands by customer specification.



  • Primary Centrifuge
  • Purifier Centrifuge





Sirolan CF

The Sirolan CF process works by dosing an acid into the alkaline heavy effluent until the iso-electric point is reached, then dosing a cationic poly-electrolyte to separate out the dirt and wool grease. All of this is achieved ‘in-line’ with the use of chemical injection into the effluent pipeline prior to static mixers.



The Sirolan CF process uses a chemical flocculation treatment designed to remove solids and grease from wool scouring wastewater. The removal of up to 90% of the wool wax, up to 99% of the solids, and up to 75% of the Biological Oxygen Demand (BOD) from the water waste streams is achievable using this method.

  • CF Panel
  • Decanter

Sirolan CFB

The Sirolan CF-B process uses an aerated biological reactor to air strip the volatile chemicals in the Sirolan CF effluent, neutralise it and degrade its remaining Biological Oxygen Demand (BOD). The effluent overflows into a clarifier where the biomass settles out from the treated effluent. The biomass is either recycled to the reactor or pumped to the effluent balance tank.



The Sirolan CF-B process uses an aerated biological reactor to remove the biological and volatile chemicals in the pre-treated effluent, neutralising it and degrading its remaining Biological Oxygen Demand (BOD). The resulting biomass is recycled back through the reactor, to cultivate an activated sludge process or sent for dewatering.



Sirolan CF-B works best when there are high levels of dissolved organic solids, and where suspended solids, woolgrease and other insoluble material have been removed from the effluent stream.

Clearinse

The Clearinse process is a chemical treatment and filtration system designed to treat low strength rinsewater effluent. The rinsewater is dosed with trace levels of chemicals to destabilise the emulsion and bind the dirt. The flocs are then separated from the rinsewater in a clarifier.



The ANDAR Clearinse process is a patented filtration system designed to treat wastewaters and process waters low in grease levels. Combining a chemical reaction with filtration system treats the low strength effluents containing suspended solids. Up to 95% of the rinsewater can be recycled back to the scour, reducing overall plant consumption, easing the load on plant heating systems through return of warm water. The addition of turbidity control ensures optimal chemical use whilst maintaining treated rinsewater quality for recycling back to the scour.

  • Clearinse Module
  • Polymer Mixing plant
  • Chemical Dosing Station

Evaporation

The Evaporation process boils off the water drawn from the treated effluent of the Sirolan CF-B process using multi-stage Evaporators. The vapour is condensed in a heat exchanger and the transferred energy heats up the effluent feed to the Evaporation system.



The evaporation process produces concentrate by boiling off the water from the treated effluent from the Sirolan CF-B process. The concentrate produced is a liquid stream of organic potassium salts, low in dirt, and free of wool grease and pesticides. This liquid fertiliser has been proven to enhance plant growth in university studies. The condensate produced contains virtually no colour, odour (ammonia) or residual COD or BOD.



Wool scouring plants already with evaporators can have their performance and throughput significantly improved by installing Sirolan CF/CF-B upstream.
